409DMQ SCHOTTKY RECTIFIER

409DMQ Description

www.DataSheet4U.com Bulletin PD-20724 rev.B 10/02 409DMQ Series SCHOTTKY RECTIFIER 400 Amp TO-244AB isolated doubler Major Ratings and Characteri.
Features The 409DMQ Schottky rectifier doubler module series has been optimized for low reverse leakage at high temperature.

409DMQ Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, free-wheeling diodes, welding, and reverse battery protection. 175 °C TJ operation High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Low forward vol

📥 Download Datasheet

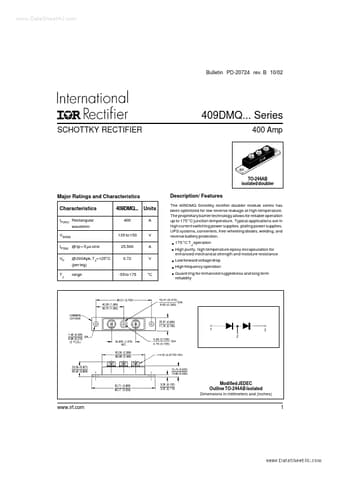

Preview of 409DMQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
409DMQ
Manufacturer
International Rectifier
File Size
103.98 KB
Datasheet
409DMQ_InternationalRectifier.pdf
Description
SCHOTTKY RECTIFIER
