40915 - RF Transistors

40915 Description

OOOBLJl] Solid State Division File No.574 RF Transistors 40915 O.2-to-1.4-GHz Low-Noise Silicon N-P-N Transistor For High-Gain Small-Signal Applic.

40915 Features

* Low noise figure: NF = 2.S dB (max. ) with 11 dB gain at 450 MHz = 3_0 dB (typ. ) at 890 MHz = 4_S dB (typ. ) at 1.3 GHz
* High gain (tuned, unneutralized): GpE = 14 dB (min. ) at 4S0 MHz
* High gain-bandwidth product
* Large dynamic range
* Low distortion

📥 Download Datasheet

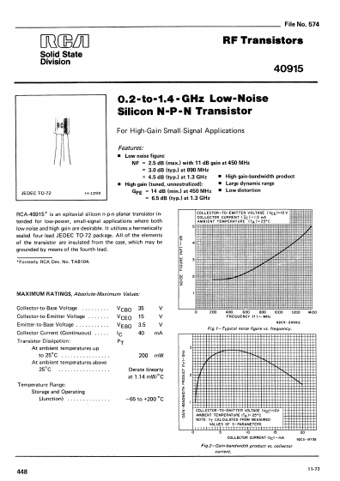

Preview of 40915 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
40915
Manufacturer
RCA
File Size
276.13 KB
Datasheet
40915-RCA.pdf
Description
RF Transistors
