409DMQ135 Datasheet - Sangdest Microelectronics

409DMQ135, SCHOTTKY RECTIFIER

Technical Data Data Sheet N1502, Rev A 409DMQ135 409DMQ150 SCHOTTKY RECTIFIER 409DMQ SERIES .

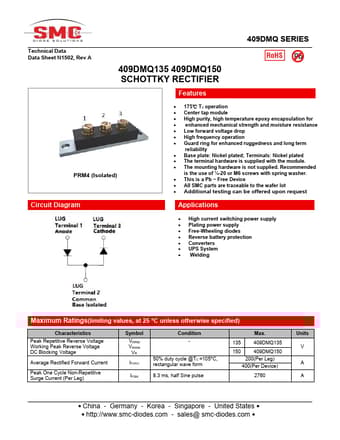

datasheet Preview Page 1 from Datasheet4u.com

409DMQ135-SangdestMicroelectronics.pdf

Preview of 409DMQ135 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

409DMQ135

Manufacturer:

SangdeSTMicroelectronics ↗

File Size:

342.29 KB

Description:

SCHOTTKY RECTIFIER

Features

* PRM4 (Isolated)
* 175℃ TJ operation
* Center tap module
* High purity, high temperature epoxy encapsulation for
* enhanced mechanical strength and moisture resistance
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long ter

Applications

* High current switching power supply
* Plating power supply
* Free-Wheeling diodes
* Reverse battery protection
* Converters
* UPS System
* Welding Maximum Ratings(limiting values, at 25 °C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Wo
