409DMQ150, 409DMQ135 - SCHOTTKY RECTIFIER

Sangdest Microelectronics

📥 Download Datasheet

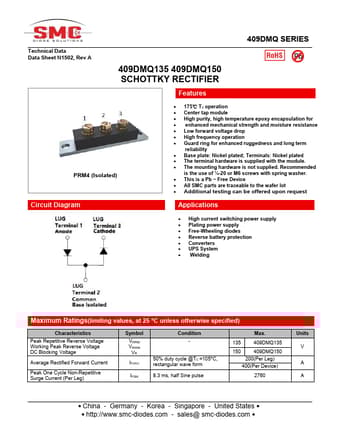

409DMQ150 Datasheet Preview — This datasheet PDF includes multiple part numbers: 409DMQ150, 409DMQ135. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	409DMQ150, 409DMQ135
Manufacturer	SangdeSTMicroelectronics
File Size	342.29 KB
Description	SCHOTTKY RECTIFIER
Datasheet	409DMQ135-SangdestMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: 409DMQ150, 409DMQ135. Please refer to the document for exact specifications by model.

409DMQ150 Product details

Features

PRM4 (Isolated).
175℃ TJ operation.
Center tap module.
High purity, high temperature epoxy encapsulation for.
enhanced mechanical strength and moisture resistance.
Low forward voltage drop.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
Base plate: Nickel plated; Terminals: Nickel plated.
The terminal hardware is supplied with the module.
The mounting hardware is not supplied. Recommended is the use of.
