409DMQ150, 409DMQ SCHOTTKY RECTIFIER

International Rectifier

409DMQ150 Description

www.DataSheet4U.com SCHOTTKY RECTIFIER Bulletin PD-20724 rev.B 10/02 409DMQ Series 400 Amp Major Ratings and Characteristics Characteristics 409.
Features The 409DMQ Schottky rectifier doubler module series has been optimized for low reverse leakage at high temperature.

409DMQ150 Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, free-wheeling diodes, welding, and reverse battery protection. 175 °C TJ operation High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Low forward vol

📥 Download Datasheet

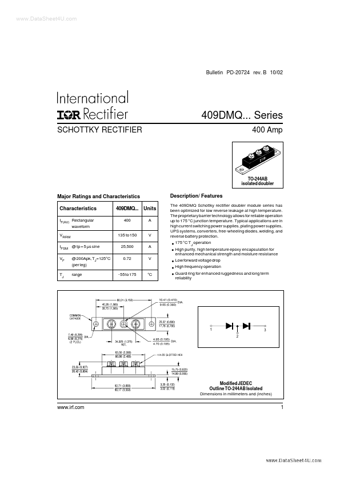

409DMQ150 Datasheet Preview — This datasheet PDF includes multiple part numbers: 409DMQ150, 409DMQ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: 409DMQ150, 409DMQ
Manufacturer: International Rectifier
File Size: 103.98 KB
Datasheet: 409DMQ_InternationalRectifier.pdf
Description: SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: 409DMQ150, 409DMQ.
Please refer to the document for exact specifications by model.
