AUIRG4PH50S - Standard Speed IGBT

Product Overview

International Rectifier

📥 Download Datasheet

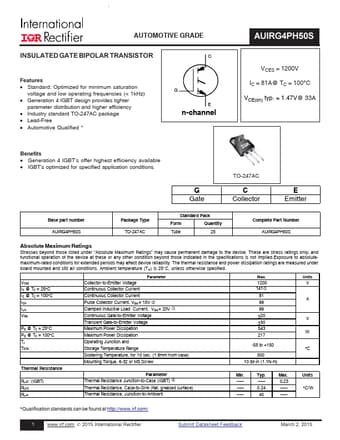

AUIRG4PH50S Standard Speed IGBT by International Rectifier - Datasheet Preview — Datasheet preview – AUIRG4PH50S

Datasheet Details

Part number	AUIRG4PH50S
Manufacturer	International Rectifier
File Size	280.20 KB
Description	Standard Speed IGBT
Datasheet	AUIRG4PH50S Datasheet
Additional preview pages of the AUIRG4PH50S datasheet.

Product details

Features

Standard: Optimized for minimum saturation voltage and low operating frequencies (< 1kHz).
Generation 4 IGBT design provides tighter parameter distribution and higher efficiency.
Industry standard TO-247AC package.
Lead-Free.
Automotive Qualified.
G E n-channel AUIRG4PH50S VCES = 1200V IC = 81A@ TC = 100°C VCE(on) typ. = 1.47V@ 33A Benefits.
Generation 4 IGBT's offer highest efficiency available.
IGBT's optimized for specifi.
