IPS1041LPBF

(IPS1041xPBF / IPS1042xPBF) SINGLE/DUAL CHANNEL INTELLIGENT POWER LOW SIDE SWITCH

IPS1041LPBF Features

* Over temperature shutdown Over current shutdown Active clamp Low current & logic level input ESD protection Optimized Turn On/Off for EMI Diagnostic on the input current Product Summary Rds(on) 100mΩ (max.) Vclamp 39V Ishutdown 4

IPS1041LPBF General Description

The IPS1041(L)(R)PbF and IPS1042GPbF are three terminal Intelligent Power Switches (IPS) featuring low side MOSFETs with over-current, over-temperature, ESD protection and drain to source active clamp. The IPS1042G is a dual channel device while the IPS1041 is a single channel. These devices offer p.

IPS1041LPBF Datasheet (536.20 KB)

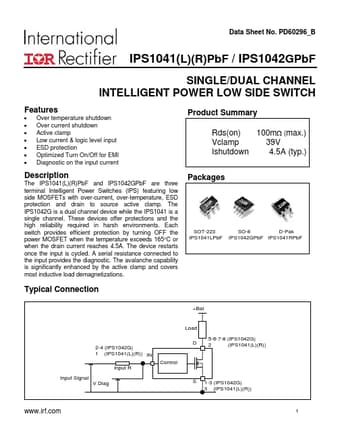

Preview of IPS1041LPBF PDF

Datasheet Details

Part number:

IPS1041LPBF

Manufacturer:

International Rectifier

File Size:

536.20 KB

Description:

(ips1041xpbf / ips1042xpbf) single/dual channel intelligent power low side switch.
