IR21531 Datasheet - International Rectifier

SELF-OSCILLATING HALF-BRIDGE DRIVER

IR21531 Features

* Integrated 600V half-bridge gate driver 15.6V zener clamp on Vcc True micropower start up Tighter initial deadtime control Low temperature coefficient

IR21531 General Description

8 Lead PDIP 8 Lead SOIC The IR21531(D)(S) are an improved version of the popular IR2155 and IR2151 gate driver ICs, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR21531 provides more functionality and is easi.

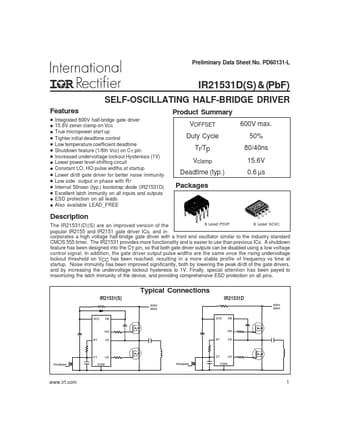

IR21531 Datasheet (130.08 KB)

IR21531 Datasheet Preview — Preview of IR21531 PDF

Datasheet Details

Part number:

IR21531

Manufacturer:

International Rectifier

File Size:

130.08 KB

Description:

Self-oscillating half-bridge driver.
