IR21531DPBF, IR21531 Datasheet - International Rectifier

IR21531DPBF SELF-OSCILLATING HALF-BRIDGE DRIVER

8 Lead PDIP 8 Lead SOIC The IR21531(D)(S) are an improved version of the popular IR2155 and IR2151 gate driver ICs, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR21531 provides more functionality and is easi.

IR21531DPBF Features

* Integrated 600V half-bridge gate driver 15.6V zener clamp on Vcc True micropower start up Tighter initial deadtime control Low temperature coefficient

IR21531_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IR21531DPBF, IR21531. Please refer to the document for exact specifications by model.

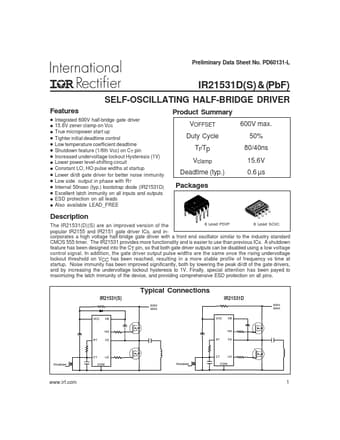

IR21531DPBF Datasheet Preview Page 2 IR21531DPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IR21531DPBF, IR21531

Manufacturer:

International Rectifier

File Size:

130.08 KB

Description:

Self-oscillating half-bridge driver.

Note:

This datasheet PDF includes multiple part numbers: IR21531DPBF, IR21531.
Please refer to the document for exact specifications by model.
