* Integrated 600V half-bridge gate driver
* 15.6V zener clamp on Vcc
* True micropower start up
* Tighter initial deadtime control
* Low temperature coefficient deadtime
* Shutdown feature (1/6th Vcc) on CT pin
* Increased undervoltage lockout
IR2153D
International Rectifier
218.24 KB
Self-oscillating half-bridge driver.

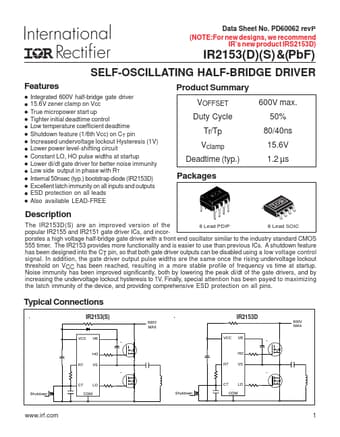

Data Sheet No. PD60062 revP (NOTE:For new designs, we recommend
IR’s new product IRS2153D)
IR2153(D)(S) &(PbF)
SELF-OSCILLATING HALF-BRIDGE DRIVER
F.
