IR21531S

SELF-OSCILLATING HALF-BRIDGE DRIVER

IR21531S Features

* Integrated 600V half-bridge gate driver 15.6V zener clamp on Vcc True micropower start up Tighter initial deadtime control Low temperature coefficient

IR21531S General Description

8 Lead PDIP 8 Lead SOIC The IR21531(D)(S) are an improved version of the popular IR2155 and IR2151 gate driver ICs, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR21531 provides more functionality and is easi.

IR21531S Datasheet (130.08 KB)

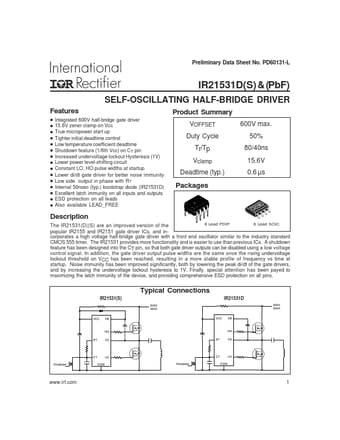

Preview of IR21531S PDF

Datasheet Details

Part number:

IR21531S

Manufacturer:

International Rectifier

File Size:

130.08 KB

Description:

Self-oscillating half-bridge driver.
