IR25XB04H Datasheet, Wave, International Rectifier

IR25XB04H Features

• Wave Diode chips are glass passivated Suitable for Universal hole mounting Easy to assemble & install on P.C.B. High Surge Current Capability High Isolation between terminals and molded case

PDF File Details

Part number:

IR25XB04H

Manufacturer:

International Rectifier

File Size:

93.24kb

Download:

📄 Datasheet

Description:

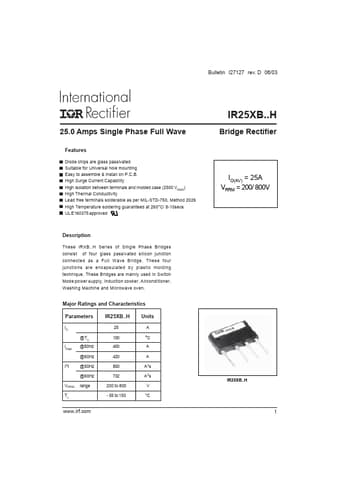

25.0 amps single phase full wave. These IRXB..H Series of Single Phase Bridges consist of four glass passivated silicon junction connected as a Full Wave Bridge. These

TAGS

IR25XB04H

International Rectifier
