IR25XB08H, IR25XBxx Datasheet - International Rectifier

IR25XB08H 25.0 Amps Single Phase Full Wave

These IRXB..H Series of Single Phase Bridges consist of four glass passivated silicon junction connected as a Full Wave Bridge. These four junctions are encapsulated by plastic molding technique. These Bridges are mainly used in Switch Mode power supply, Induction cooker, Airconditioner, Washing Mac.

IR25XB08H Features

* Diode chips are glass passivated Suitable for Universal hole mounting Easy to assemble & install on P.C.B. High Surge Current Capability High Isolation between terminals and molded case (2500 VRMS) High Thermal Conductivity Lead free terminals solderable as per MIL-STD-750, Method 2026 High Temperat

IR25XBxx_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IR25XB08H, IR25XBxx. Please refer to the document for exact specifications by model.

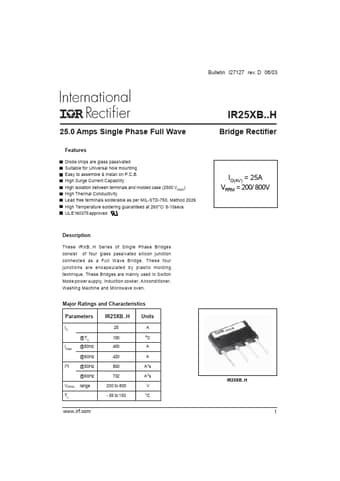

IR25XB08H Datasheet Preview Page 2 IR25XB08H Datasheet Preview Page 3

Datasheet Details

Part number:

IR25XB08H, IR25XBxx

Manufacturer:

International Rectifier

File Size:

93.24 KB

Description:

25.0 amps single phase full wave.

Note:

This datasheet PDF includes multiple part numbers: IR25XB08H, IR25XBxx.
Please refer to the document for exact specifications by model.
