IR2520D - ADAPTIVE BALLAST CONTROL IC

Product Overview

International Rectifier

Datasheet Details

Part number	IR2520D
Manufacturer	International Rectifier
File Size	377.49 KB
Description	ADAPTIVE BALLAST CONTROL IC
Datasheet	IR2520D Datasheet

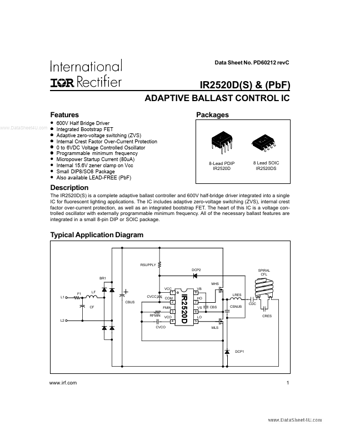

Additional preview pages of the IR2520D datasheet.

Product details

Description

The IR2520D(S) is a complete adaptive ballast controller and 600V half-bridge driver integrated into a single IC for fluorescent lighting applications.

Features

es 600V Half Bridge Driver Integrated Bootstrap FET Adaptive zero-voltage switching (ZVS) Internal Crest Factor Over-Current Protection 0 to 6VDC Voltage Controlled Oscillator Programmable minimum frequency Micropower Startup Current (80uA) Internal 15.6V zener clamp on Vcc Small DIP8/SO8 Package Also available LEAD-FREE (PbF) Packages www. DataSheet4U. com 8-Lead PDIP IR2520D 8 Lead SOIC IR2520DS.
