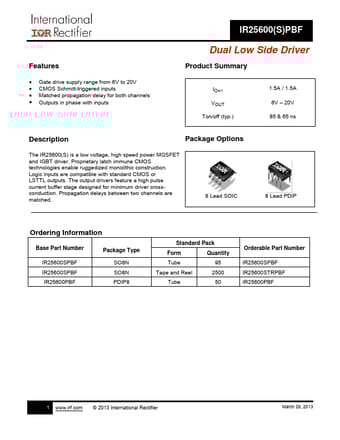

IR25600PBF Datasheet, Driver, International Rectifier

IR25600PBF Features

• Driver
• Gate drive supply range from 6V to 20V
• CMOS Schmitt-triggered inputs
• Matched propagation delay for both channels
• Outputs in phase with inputs IR

PDF File Details

Part number:

IR25600PBF

Manufacturer:

International Rectifier

File Size:

1.33MB

Download:

📄 Datasheet

Description:

Dual low side driver. Package Options The IR25600(S) is a low voltage, high speed power MOSFET and IGBT driver. Proprietary latch immune CMOS technologie
