IR25602SPBF

Half-Bridge Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Infineon Technologies AG IR25602SPBF IC GATE DRVR HALF-BRIDGE 8SOIC DigiKey 0 0
$0

IR25602SPBF Datasheet (1.91 MB)

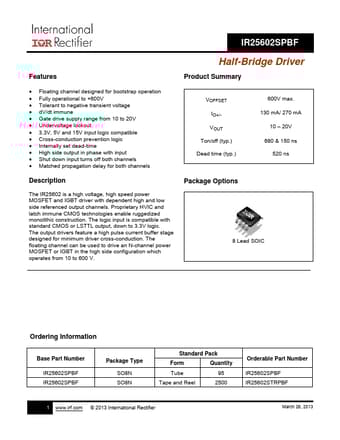

Preview of IR25602SPBF PDF Datasheet

Datasheet Details

Part number:

IR25602SPBF

Manufacturer:

International Rectifier

File Size:

1.91 MB

Description:

Half-bridge driver

IR25602SPBF Features

* Half-Bridge Driver Product Summary

* Floating channel designed for bootstrap operation

* Fully operational to +600V

* Tolerant to negative transient voltage

* dV/dt immune

* Gate drive supply range from 10 to 20V

* Undervoltage lockout

* 3.3V, 5V and 15V input logic com

IR25602SPBF General Description

The IR25602 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to.
