IR25601SPBF

Half-Bridge Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Infineon Technologies AG IR25601SPBF IC GATE DRVR HALF-BRIDGE 8SOIC DigiKey 0 0
$0

IR25601SPBF Datasheet (1.35 MB)

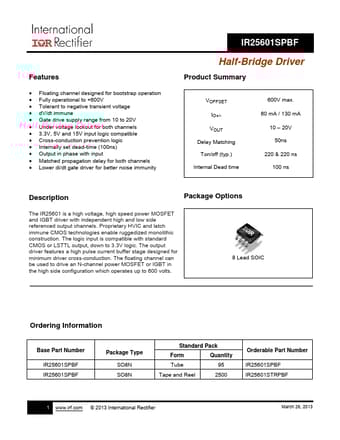

Preview of IR25601SPBF PDF Datasheet

Datasheet Details

Part number:

IR25601SPBF

Manufacturer:

International Rectifier

File Size:

1.35 MB

Description:

Half-bridge driver.

IR25601SPBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600V

* Tolerant to negative transient voltage

* dV/dt immune

* Gate drive supply range from 10 to 20V

* Under voltage lockout for both channels

* 3.3V, 5V and 15V input logic compatible

* Cros

IR25601SPBF General Description

Package Options The IR25601 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or L.
