IR25603PBF

Self-Oscillating Half-Bridge Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC IR25603PBF IR25603 - GATE DRIVER DigiKey 0 229 units
$1.31

IR25603PBF Datasheet (690.40 KB)

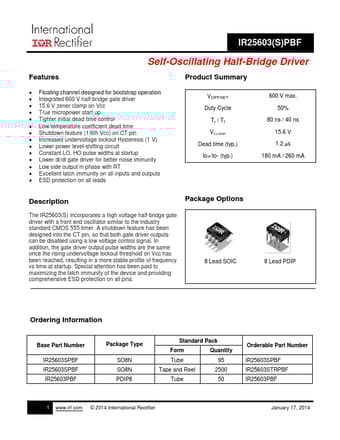

Preview of IR25603PBF PDF

Datasheet Details

Part number:

IR25603PBF

Manufacturer:

International Rectifier

File Size:

690.40 KB

Description:

Self-oscillating half-bridge driver.

IR25603PBF Features

* Self-Oscillating Half-Bridge Driver Product Summary

* Floating channel designed for bootstrap operation

* Integrated 600 V half-bridge gate driver

* 15.6 V zener clamp on Vcc

* True micropower start up

* Tighter initial dead time control

* Low temperature coefficient dead t
