IR25-21C-TR8 Datasheet, Led, Everlight Electronics

IR25-21C-TR8 Features

  • Led ․Small double-end package ․Low forward voltage ․Good spectral matching to Si photo detector ․Package in 8mm tape on 7” diameter reel ․Pb free ․The product itself will remain within RoHS

PDF File Details

Part number:

IR25-21C-TR8

Manufacturer:

Everlight Electronics

File Size:

200.24kb

Download:

📄 Datasheet

Description:

Reverse package infrared led. ․IR25-21C is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens. ․

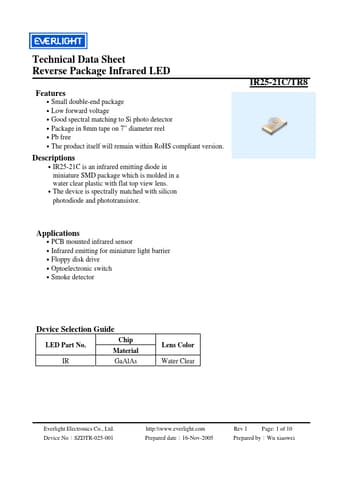

Datasheet Preview: IR25-21C-TR8 📥 Download PDF (200.24kb)
Page 2 of IR25-21C-TR8 Page 3 of IR25-21C-TR8

IR25-21C-TR8 Application

  • Applications ․PCB mounted infrared sensor ․Infrared emitting for miniature light barrier ․Floppy disk drive ․Optoelectronic switch ․Smoke detector
