IR2520DS ADAPTIVE BALLAST CONTROL IC

The IR2520D(S) is a complete adaptive ballast controller and 600V half-bridge driver integrated into a single IC for fluorescent lighting applications. The IC includes adaptive zero-voltage switching (ZVS), internal crest factor over-current protection, as well as an integrated bootstrap FET. The he.

IR2520DS Features

* 600V Half Bridge Driver Integrated Bootstrap FET Adaptive zero-voltage switching (ZVS) Internal Crest Factor Over-Current Protection 0 to 6VDC Voltage Controlled Oscillator Programmable minimum frequency Micropower Startup Current (80uA) Internal 15.6V zener clamp on Vcc Small DIP8/SO8 Package Also

IR2520D_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IR2520DS, IR2520D. Please refer to the document for exact specifications by model.

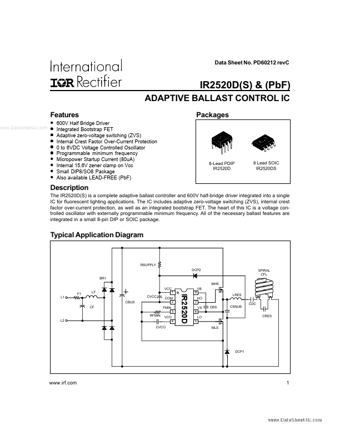

IR2520DS Datasheet Preview Page 2 IR2520DS Datasheet Preview Page 3
