IR3314PBF - Programmable Current Sense High Side Switch

This page provides the datasheet information for the IR3314PBF, a member of the IR3314SPBF Programmable Current Sense High Side Switch family.

Description

The IR3314(S)PbF is a fully protected 4 terminals high side switch.

The input signal is referenced to Vcc.

When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on.

Features

  • Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Reverse battery protection Lead-Free Product Summary Rds(on) 12 mΩ max. Vcc op. 6 to 32V Current Ratio 5300 Prog. Ishutdown 6 to 58A Vclamp 40V Packages.

📥 Download Datasheet

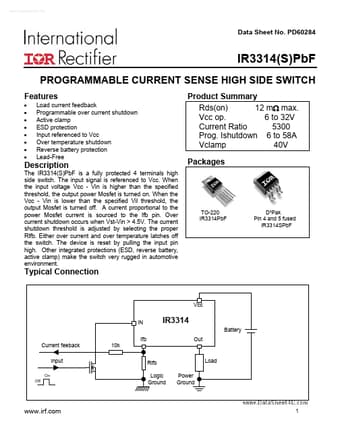

Datasheet preview – IR3314PBF

Datasheet Details

Part number IR3314PBF
Manufacturer International Rectifier
File Size 1.27 MB
Description Programmable Current Sense High Side Switch
Datasheet download datasheet IR3314PBF Datasheet
Additional preview pages of the IR3314PBF datasheet.
