IR3316PBF

LOW EMI CURRENT SENSE HIGH SIDE SWITCH

IR3316PBF Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Switching time optimized for low EMI Reverse battery protection Product Summary Rds(

IR3316PBF General Description

The IR3316(S)PbF is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is.

IR3316PBF Datasheet (518.06 KB)

Preview of IR3316PBF PDF

Datasheet Details

Part number:

IR3316PBF

Manufacturer:

International Rectifier

File Size:

518.06 KB

Description:

Low emi current sense high side switch.

📁 Related Datasheet

IR3316S Low EMI Current Sense High Side Switch (International Rectifier)

IR3316SPBF LOW EMI CURRENT SENSE HIGH SIDE SWITCH (International Rectifier)

IR3310 PROGRAMMABLE CURRENT SENSING HIGH SIDE SWITCH (International Rectifier)

IR3312 PROGRAMMABLE CURRENT SENSING HIGH SIDE SWITCH (International Rectifier)

IR3313PBF PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH (International Rectifier)

IR3313S PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH (International Rectifier)

IR3314PBF Programmable Current Sense High Side Switch (International Rectifier)

IR3314SPBF Programmable Current Sense High Side Switch (International Rectifier)

IR3300 SERVICE HANDBOOK (Canon)

iR3300 Copying Guide (Canon)

TAGS

IR3316PBF LOW EMI CURRENT SENSE HIGH SIDE SWITCH International Rectifier

Image Gallery

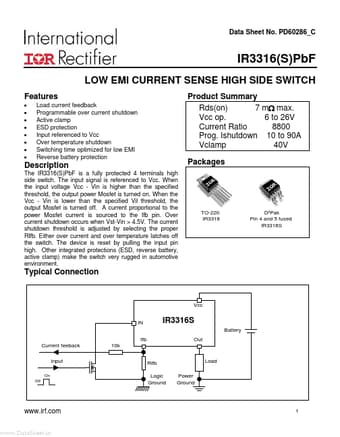

IR3316PBF Datasheet Preview Page 2 IR3316PBF Datasheet Preview Page 3
