IR3316S

Low EMI Current Sense High Side Switch

International Rectifier

IR3316S Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Switching time optimized for low EMI Reverse battery protection Product Summary Rds(

IR3316S General Description

The IR3316S is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is turn.

IR3316S Datasheet (929.70 KB)

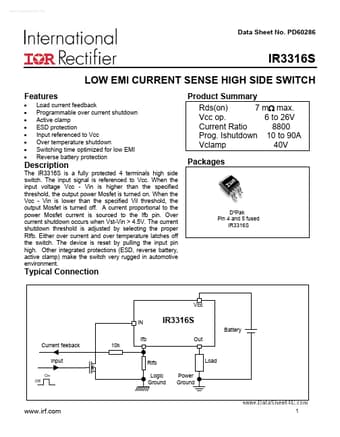

IR3316S Datasheet Preview — Preview of IR3316S PDF

Datasheet Details

Part number:

IR3316S

Manufacturer:

International Rectifier

File Size:

929.70 KB

Description:

Low emi current sense high side switch.
