IR3313S

PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH

International Rectifier

IR3313S Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Reverse battery protection Product Summary Rds(on) 7 mΩ max. Vcc op. 6 to 32V Current Ratio 88

IR3313S General Description

The IR3313S is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is turn.

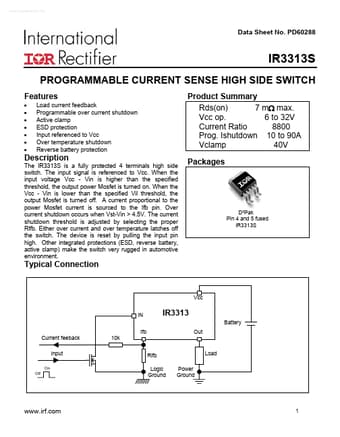

IR3313S Datasheet (848.06 KB)

IR3313S Datasheet Preview — Preview of IR3313S PDF

Datasheet Details

Part number:

IR3313S

Manufacturer:

International Rectifier

File Size:

848.06 KB

Description:

Programmable current sense high side switch.
