IR4427 Datasheet, Driver, International Rectifier

IR4427 Features

• Driver
• Gate drive supply range from 6 to 20V
• CMOS Schmitt-triggered inputs
• Matched propagation delay for both channels
• Outputs out of phase with inputs

PDF File Details

Part number:

IR4427

Manufacturer:

International Rectifier

File Size:

223.22kb

Download:

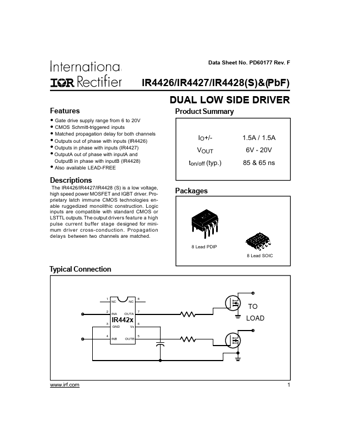

📄 Datasheet

Description:

Dual low side driver. The IR4426/IR4427/IR4428 (S) is a low voltage, high speed power MOSFET and IGBT driver. Proprietary latch immune CMOS technologies e
