IR4427S Datasheet - International Rectifier

IR4427S, DUAL LOW SIDE DRIVER

Data Sheet No.PD60177 Rev.F IR4426/IR4427/IR4428(S)&(PbF) .
The IR4426/IR4427/IR4428 (S) is a low voltage, high speed power MOSFET and IGBT driver.

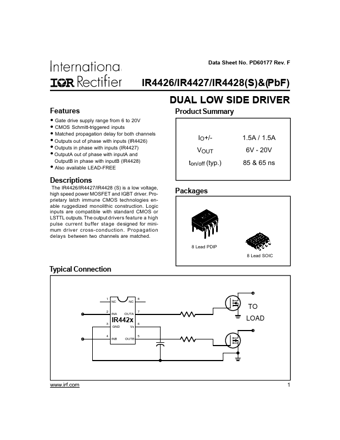

 datasheet Preview Page 1 from Datasheet4u.com

IR4427S_InternationalRectifier.pdf

Preview of IR4427S PDF

Datasheet Details

Part number:

IR4427S

Manufacturer:

International Rectifier

File Size:

223.22 KB

Description:

DUAL LOW SIDE DRIVER

Features

* Gate drive supply range from 6 to 20V
* CMOS Schmitt-triggered inputs
* Matched propagation delay for both channels
* Outputs out of phase with inputs (IR4426)
* Outputs in phase with inputs (IR4427)
* OutputA out of phase with inputA and OutputB in phase with inputB (IR442
