IRF1312L Datasheet - International Rectifier

IRF1312L (IRF1312x) HEXFET Power MOSFET

PD- 94504 HEXFET® Power MOSFET Applications l High frequency DC-DC converters l Motor Control l Uninterrutible Power Supplies Benefits l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current www.DataSheet4U.com IRF1312 IRF1312S IRF1312L ID 95A† VDSS 80V RDS(on) max 10mΩ TO-220AB IRF1312 D2Pak IRF1312S TO-262 IRF1312L Absolute Maximum Rati.

IRF1312L Features

* F1312/S/L D2Pak Package Outline D2Pak Part Marking Information THIS IS AN IRF530S WITH LOT CODE 8024 AS S EMBLED ON WW 02, 2000 IN T HE AS SEMBLY LINE "L" INTERNATIONAL RECTIFIER LOGO AS S EMBLY LOT CODE PART NUMBER F530S DAT E CODE YEAR 0 = 2000 WEEK 02 LINE L www.irf.com 9 IRF1312/S/L TO-262 P

IRF1312L Datasheet (251.39 KB)

Preview of IRF1312L PDF

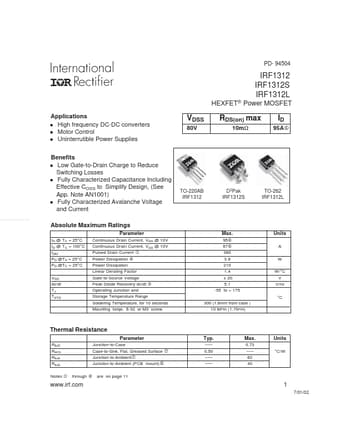

IRF1312L Datasheet Preview Page 2 IRF1312L Datasheet Preview Page 3

Datasheet Details

Part number:

IRF1312L

Manufacturer:

International Rectifier

File Size:

251.39 KB

Description:

(irf1312x) hexfet power mosfet.
