IRF3704L Power MOSFET

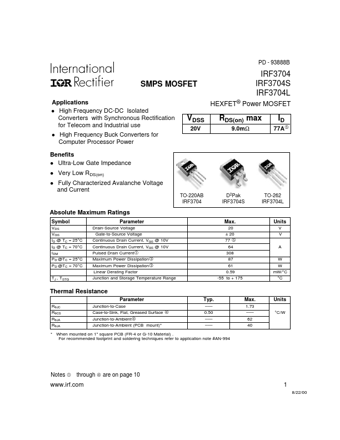

PD - 93888B SMPS MOSFET Applications l High Frequency DC-DC Isolated Converters with Synchronous Rectification for Telecom and Industrial use l IRF3704 IRF3704S IRF3704L HEXFET® Power MOSFET VDSS 20V RDS(on) max 9.0mΩ ID 77A High Frequency Buck Converters for Computer Processor Power Benefits l Ultra-Low Gate Impedance l l Very Low RDS(on) Fully Characterized Avalanche Voltage and Current TO-220AB IRF3704 D2Pak IRF3704S TO-262 IRF3704L Absolute Maximum Ratings Symbol VDS VGS ID @ TC = .

IRF3704L Features

* 0 (.16 5) -B1.3 2 (.05 2) 1.2 2 (.04 8) 10 .1 6 (.4 00 ) R E F. 6.47 (.2 55 ) 6.18 (.2 43 ) 1 5.49 (.6 10) 1 4.73 (.5 80) 5.28 (.2 08 ) 4.78 (.1 88 ) 2.7 9 (.110 ) 2.2 9 (.090 ) 2.61 (.1 03 ) 2.32 (.0 91 ) 1.3 9 (.0 55 ) 1.1 4 (.0 45 ) 8.8 9 (.3 50 ) R E F. 1.7 8 (.07 0) 1.2 7 (.05 0) 1 3 3X
