IRF3707Z, N-Channel MOSFET

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRF3707Z， IIRF3707Z *.

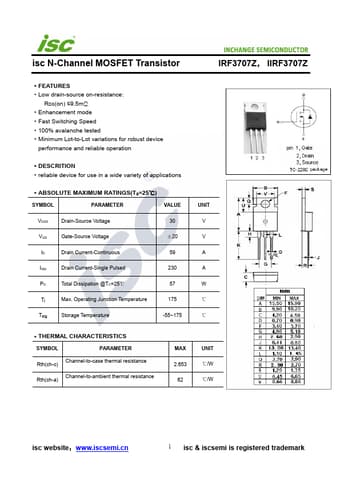

datasheet Preview Page 1 from Datasheet4u.com

IRF3707Z-INCHANGE.pdf

IRF3707Z Datasheet Preview — Preview of IRF3707Z PDF

Datasheet Details

Part number:

IRF3707Z

Manufacturer:

INCHANGE

File Size:

242.11 KB

Description:

N-Channel MOSFET

Features

* Low drain-source on-resistance: RDS(on) ≤9.5mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 30 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 59 IDM Drain Current-Single Pulsed 230 PD Total Dissipation @TC=25℃ 57 Tj Max. Operating Junction Temperature 175 Tstg Storage Tem
