IRF3707ZPbF Power MOSFET

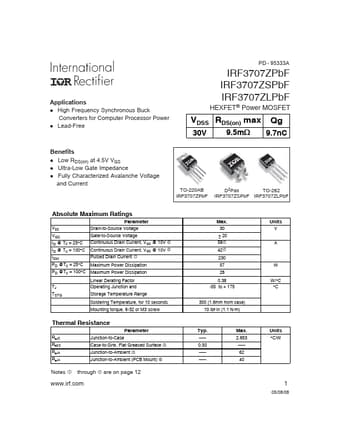

Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l Lead-Free PD - 95333A IRF3707ZPbF IRF3707ZSPbF IRF3707ZLPbF HEXFET® Power MOSFET VDSS RDS(on) max Qg :30V 9.5m 9.7nC Benefits l Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current TO-220AB D2Pak TO-262 IRF3707ZPbF IRF3707ZSPbF IRF3707ZLPbF Absolute Maximum Ratings Parameter VDS Drain-to-Source Voltage VGS ID @ TC = 25°C ID @ TC = 100°C IDM PD .

IRF3707ZPbF Features

* e that is included in all MOSFET data sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the tim
