IRF7303 - Power MOSFET

Datasheet Summary

Description

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area.

Features

  • R LO T C O D E (LA S T 4 D IG IT S ) 3 12 IN T E R N A TI ON A L R E C T IF IE R LO G O F 7 101 T OP PART NUMBER B O T TO M IRF7303 Tape & Reel Information SO8 Dimensions are shown in millimeters (inches) T ER M IN A L N U M B E R 1 12 .3 ( .48 4 ) 11 .7 ( .46 1 ) 8 .1 ( .3 18 ) 7 .9 ( .3 12 ) F E ED D IR E C T IO N N O TE S: 1 . CO N TRO LL IN G D IM E N SIO N : M ILLIM E TE R. 2 . A LL DIM E NS IO NS A R E S HO W N IN M ILL IM E TER S (INC HE S ). 3 . O UTL IN E C O NFO RM S TO E IA -.

📥 Download Datasheet

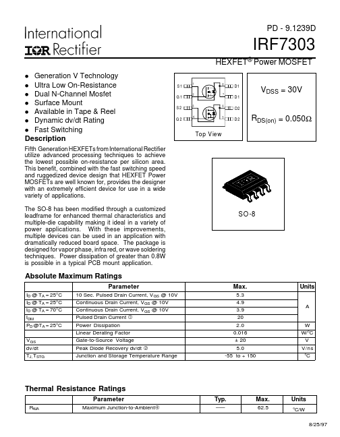

Datasheet preview – IRF7303

📁 Similar Datasheet

  • IRF730 - PowerMOS transistor (NXP)
  • IRF730 - N-Channel Power MOSFET (STMicroelectronics)
  • IRF730 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF730 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF730 - N-Channel MOSFET (NTE)
  • IRF730 - Power MOSFET (Vishay)
  • IRF730 - N-Channel Power MOSFET (nELL)
  • IRF730 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF730 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • IRF730A - Power MOSFET (Vishay)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD - 9.1239D IRF7303 HEXFET® Power MOSFET Generation V Technology Ultra Low On-Resistance l Dual N-Channel Mosfet l Surface Mount l Available in Tape & Reel l Dynamic dv/dt Rating l Fast Switching Description l l S1 G1 S2 G2 1 8 D1 D1 D2 D2 2 7 VDSS = 30V RDS(on) = 0.050Ω 3 6 4 5 Top View Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications.
