IRF730 - PowerMOS transistor

Datasheet Summary

Description

N-channel, enhancement mode field-effect power transistor, intended for use in off-line switched mode power supplies, T.V.

and computer monitor power supplies, d.c.

to d.c.

Features

  • Repetitive Avalanche Rated.
  • Fast switching.
  • High thermal cycling performance.
  • Low thermal resistance g IRF730 SYMBOL d QUICK.

📥 Download Datasheet

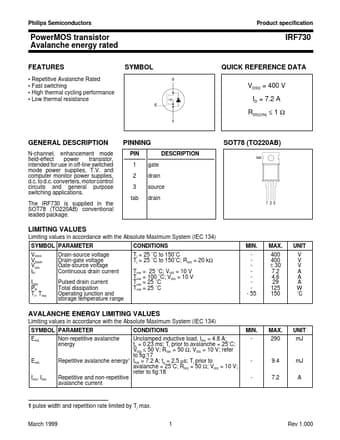

Datasheet preview – IRF730

Datasheet Details

Part number IRF730
Manufacturer NXP
File Size 59.69 KB
Description PowerMOS transistor
