IRF530N Datasheet, transistor equivalent, NXP

IRF530N Features

  • Transistor
  • ’Trench’ technology
  • Low on-state resistance
  • Fast switching
  • Low thermal resistance SYMBOL d QUICK REFERENCE DATA VDSS = 100 V ID = 17 A g RDS(O

PDF File Details

Part number:

IRF530N

Manufacturer:

NXP ↗

File Size:

97.03kb

Download:

📄 Datasheet

Description:

N-channel trenchmos transistor. N-channel enhancement mode field-effect power transistor in a plastic envelope using ’trench’ technology. Applications:

  • d.c.

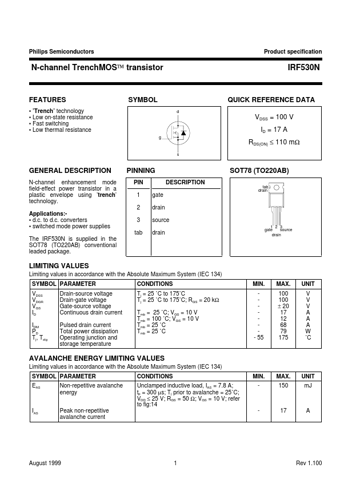

  • Datasheet Preview: IRF530N 📥 Download PDF (97.03kb)
    Page 2 of IRF530N Page 3 of IRF530N

    IRF530N Application

    • Applications
    • d.c. to d.c. converters
    • switched mode power supplies The IRF530N is supplied in the SOT78 (TO220AB) conventional le
