IRF7314PBF Datasheet - International Rectifier

IRF7314PBF - Power MOSFET

Top View SO-8 Absolute Maximum Ratings ( TA = 25°C Unless Otherwise Noted) Symbol V DS V GS ID IDM IS PD EAS IAR EAR dv/dt TJ, TSTG Drain-Source Voltage Gate-Source Voltage Continuous Drain Current… TA = 25°C TA = 70°C Maximum Units V Pulsed Drain Current Continuous Source Current (Diode Condu

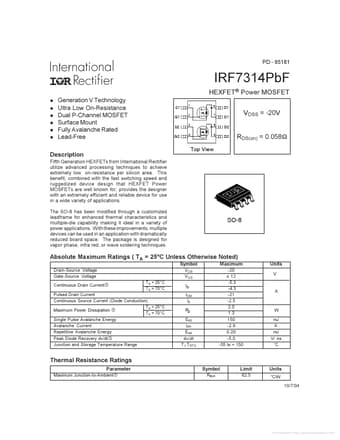

PD - 95181 IRF7314PbF l l l l l l Generation V Technology Ultra Low On-Resistance Dual P-Channel MOSFET Surface Mount Fully Avalanche Rated Lead-Free HEXFET® Power MOSFET S1 G1 S2 G2 1 2 3 4 8 7 D1 D1 D2 D2 VDSS = -20V RDS(on) = 0.058Ω 6 5 Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOS

IRF7314PBF_InternationalRectifier.pdf

Preview of IRF7314PBF PDF
IRF7314PBF Datasheet Preview Page 2 IRF7314PBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRF7314PBF

Manufacturer:

International Rectifier

File Size:

218.02 KB

Description:

Power mosfet.
