IRF7453PbF SMPS MOSFET

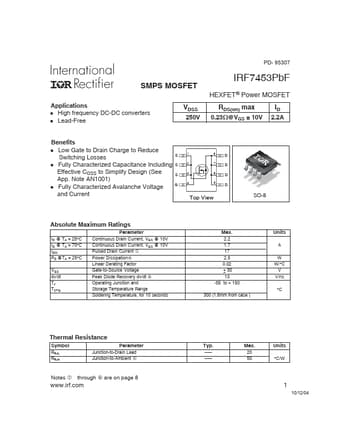

SMPS MOSFET Applications l High frequency DC-DC converters l Lead-Free VDSS 250V PD- 95307 IRF7453PbF HEXFET® Power MOSFET RDS(on) max ID 0.23W@VGS = 10V 2.2A Benefits l Low Gate to Drain Charge to Reduce Switching Losses S l Fully Characterized Capacitance Including S Effective COSS to Simplify Design (See App. Note AN1001) S l Fully Characterized Avalanche Voltage G and Current 18 27 36 45 Top View AA D D D D SO-8 Absolute Maximum Ratings ID @ TA = 25°C ID @ TA = 70°C IDM .

IRF7453PbF Features

* 5Ω, IAS = 2.2A.

* When mounted on 1 inch square copper board Data and specifications subject to change without notice. This product has been designed and qualified for the Consumer market. Qualification Standards can be found on IR’s Web site. IR WORLD HEADQUARTERS: 233 Kansas St., El Seg
