IRF9393, IRF9393PbF Datasheet - International Rectifier

IRF9393, IRF9393PbF, Power MOSFET

VDS VGS max RDS(on) max (@VGS = -10V) ID (@TA = 25°C) -30 V ±25 V S1 S2 19.4 mΩ S3 -9.2 A G4 PD - 97522A IRF9393PbF HEXFET® Power MOSFET .

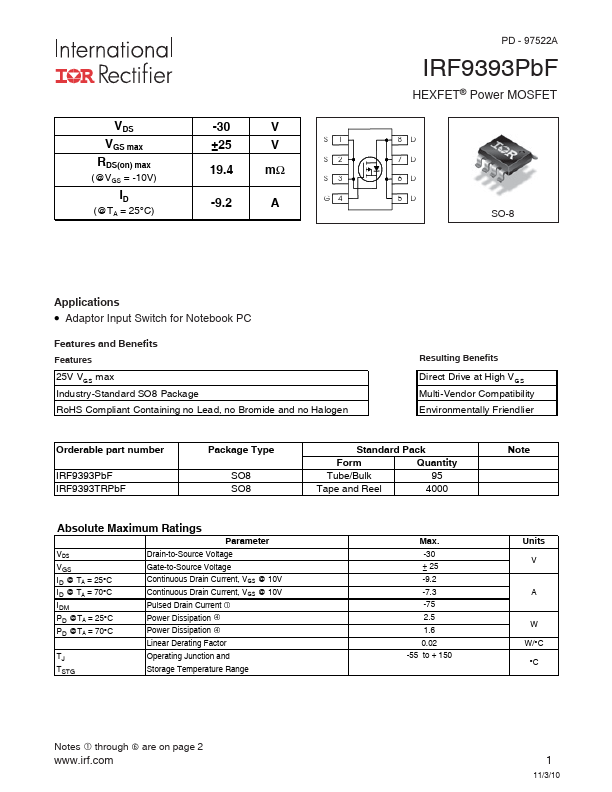

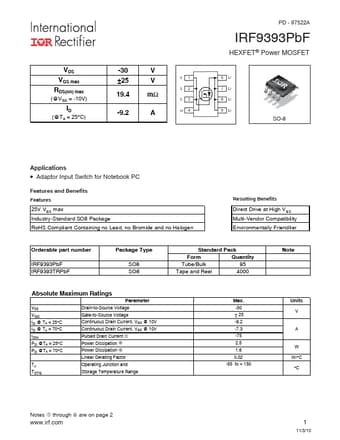

datasheet Preview Page 1 from Datasheet4u.com

IRF9393PbF-InternationalRectifier.pdf

IRF9393 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRF9393, IRF9393PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRF9393, IRF9393PbF

Manufacturer:

International Rectifier

File Size:

262.58 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRF9393, IRF9393PbF.
Please refer to the document for exact specifications by model.

Features

* Features 25V VGS max Industry-Standard SO8 Package RoHS Compliant Containing no Lead, no Bromide and no Halogen Resulting Benefits Direct Drive at High VGS Multi-Vendor Compatibility Environmentally Friendlier Orderable part number IRF9393PbF IRF9393TRPbF Package Type SO8 SO8 Standard Pack Form
