IRF9395MTRPBF, IRF9395MPBF Datasheet - International Rectifier

IRF9395MTRPBF - HEXFET Power MOSFET

The IRF9395MTRPbF combines the latest HEXFET® P-Channel Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a SO-8 and only 0.6 mm profile.

The DirectFET package is compatible with existing layout ge

IRF9395MTRPBF Features

* l Environmentaly Friendly Product l RoHs Compliant Containing no Lead, Q1-Q2 G G no Bromide and no Halogen l Dual Common-Drain P-Channel MOSFETs Provides High Level of Integration and Very Low RDS(on) Applicable DirectFET Outline and Substrate Outline (see p.7,8 for details) SQ SX ST MQ MX MT D

IRF9395MPBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRF9395MTRPBF, IRF9395MPBF. Please refer to the document for exact specifications by model.

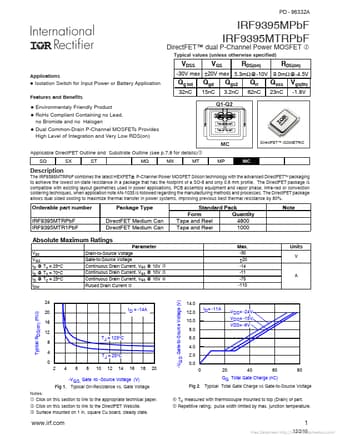

IRF9395MTRPBF Datasheet Preview Page 2 IRF9395MTRPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRF9395MTRPBF, IRF9395MPBF

Manufacturer:

International Rectifier

File Size:

311.46 KB

Description:

Hexfet power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRF9395MTRPBF, IRF9395MPBF.
Please refer to the document for exact specifications by model.
