IRF9540NL Datasheet, Mosfet, International Rectifier

IRF9540NL Features

• Mosfet Type as D.U.T. 50KΩ QG 12V .2µF -10V QGS VG QGD VGS .3µF D.U.T. +VDS -3mA Charge IG ID Current Sampling Resistors Fig 13a. Basic Gate Charge Waveform Fig 13b. Gate Charg

PDF File Details

Part number:

IRF9540NL

Manufacturer:

International Rectifier

File Size:

302.91kb

Download:

📄 Datasheet

Description:

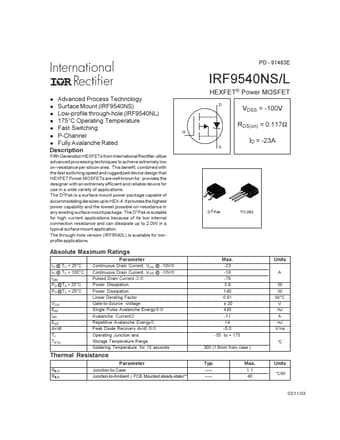

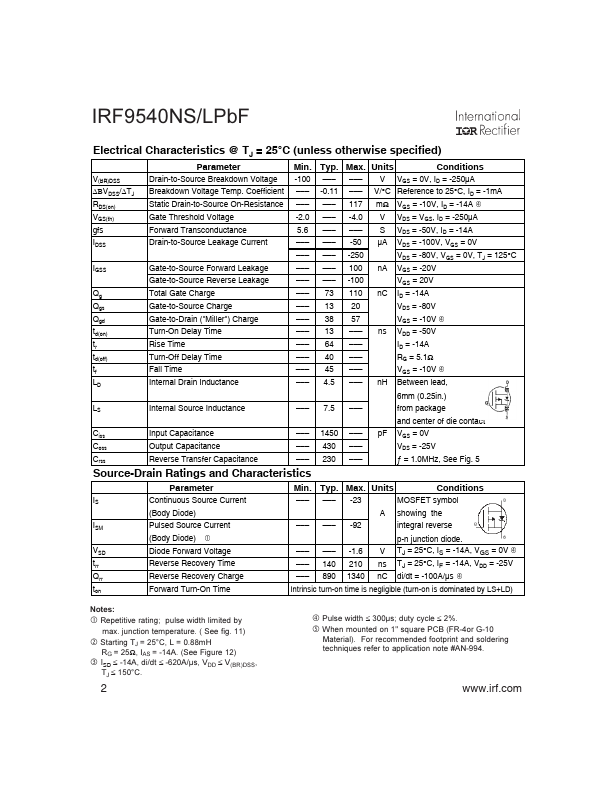

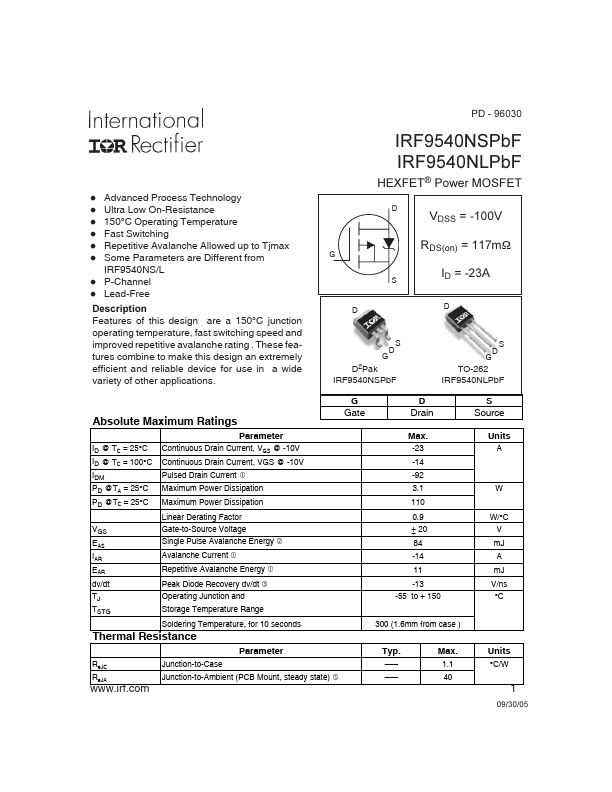

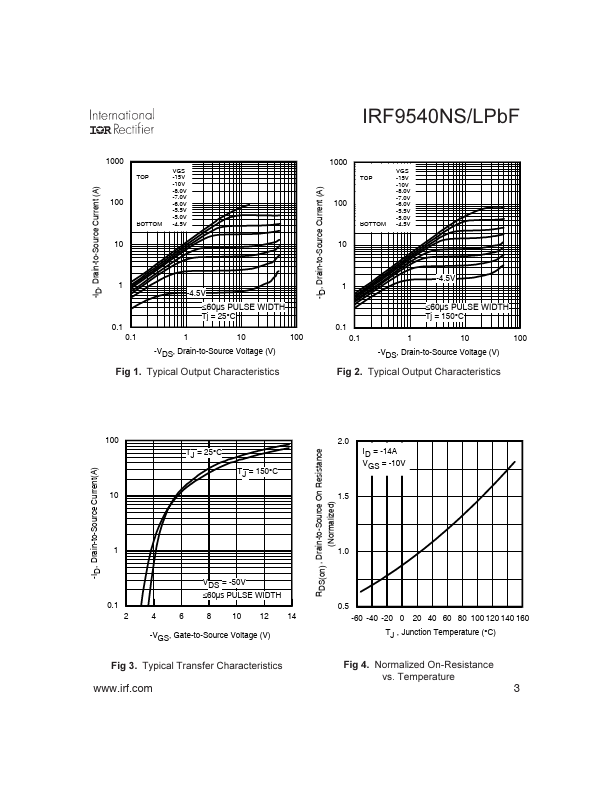

Power mosfet. l l D VDSS = -100V RDS(on) = 0.117Ω G ID = -23A S Fifth Generation HEXFETs from International Rectifier utilize advanced process

IRF9540NL Application

• Applications The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability an
