IRF9540NSPBF, IRF9540NLPBF HEXFET POWER MOSFET

International Rectifier

Description

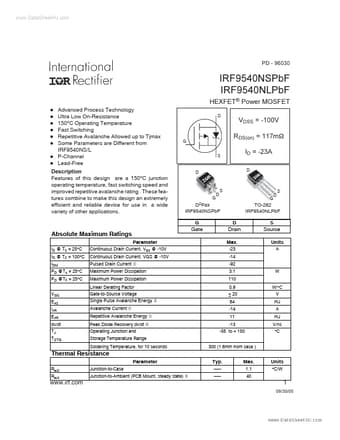

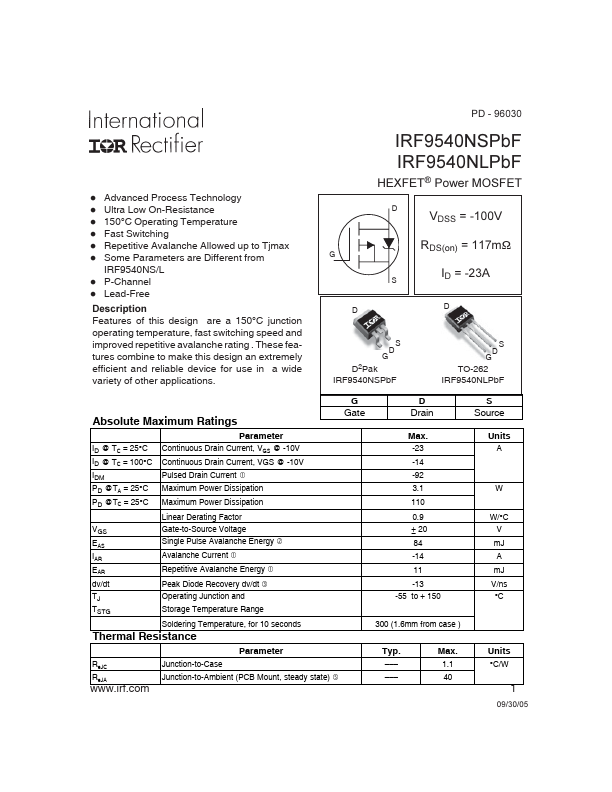

www.DataSheet4U.com PD - 96030 HEXFET® Power MOSFET l l l l l l l l IRF9540NSPbF IRF9540NLPbF VDSS = -100V RDS(on) = 117mΩ Advanced Process Techno.
Features of this design are a 150°C junction operating temperature, fast switching speed and improved repetitive avalanche rating .

📥 Download Datasheet

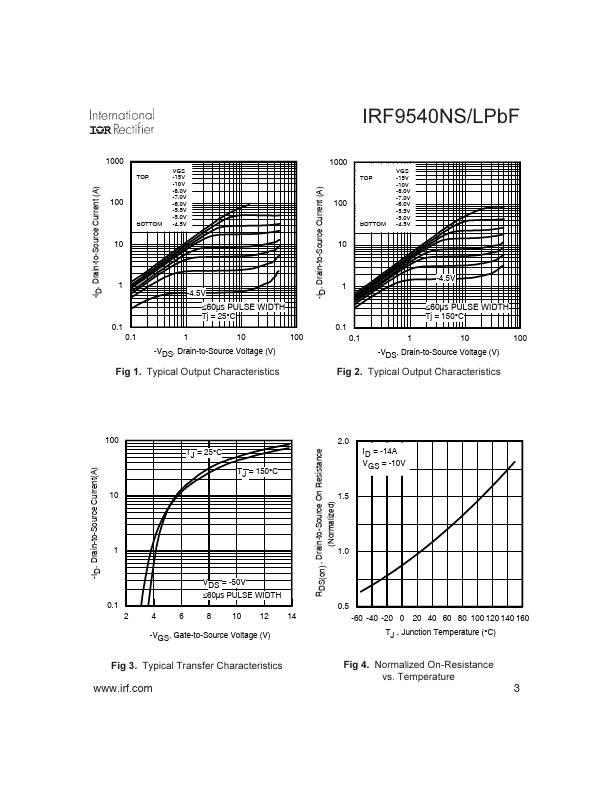

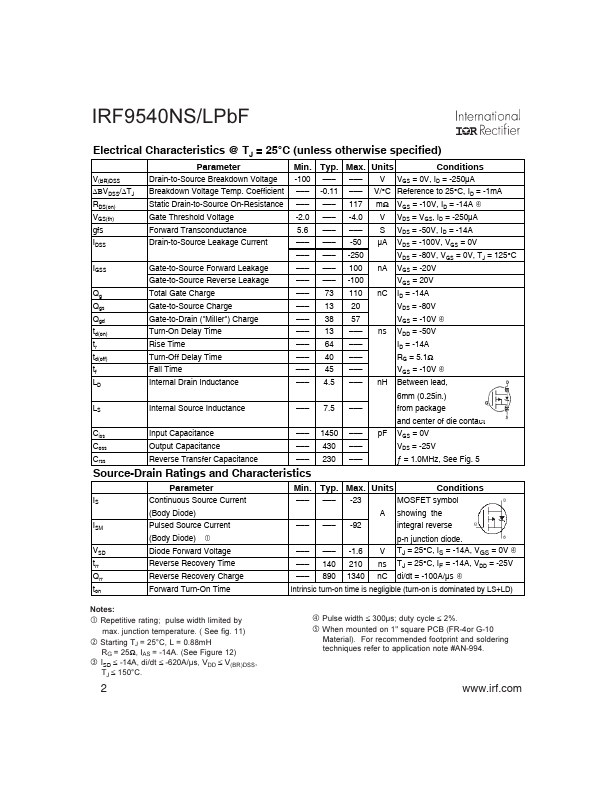

IRF9540NSPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRF9540NSPBF, IRF9540NLPBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRF9540NSPBF, IRF9540NLPBF
Manufacturer: International Rectifier
File Size: 365.43 KB
Datasheet: IRF9540NLPBF_InternationalRectifier.pdf
Description: HEXFET POWER MOSFET
Note: This datasheet PDF includes multiple part numbers: IRF9540NSPBF, IRF9540NLPBF.
Please refer to the document for exact specifications by model.

Applications

* D G D S G D S D2Pak IRF9540NSPbF G D TO-262 IRF9540NLPbF S Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TA = 25°C PD @TC = 25°C VGS EAS IAR EAR dv/dt TJ TSTG Continuous Drain Current, VGS @ -10V Continuous Drain Current, VGS @ -10V Pulsed Drain Current Gate D
