IRF9540 P-Channel Power MOSFET

IRF9540, RF1S9540SM Data Sheet July 1999 File Number 2282.6 19A, 100V, 0.200 Ohm, P-Channel Power MOSFETs These are P-Channel enhancement mode silicon gate power ﬁeld effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a speciﬁed level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high p.

IRF9540 Features

* 19A, 100V

* rDS(ON) = 0.200Ω

* Single Pulse Avalanche Energy Rated

* SOA is Power Dissipation Limited

* Nanosecond Switching Speeds

* Linear Transfer Characteristics

* High Input Impedance

* Related Literature - TB334 “Guidelines for

IRF9540 Datasheet (59.78 KB)

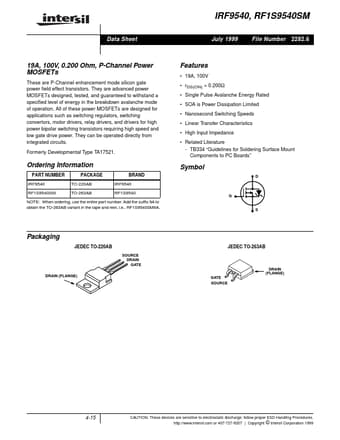

IRF9540 Datasheet Preview — Preview of IRF9540 PDF

Datasheet Details

Part number:

IRF9540

Manufacturer:

Intersil Corporation

File Size:

59.78 KB

Description:

P-channel power mosfet.
