IRFBL3703 SMPS MOSFET

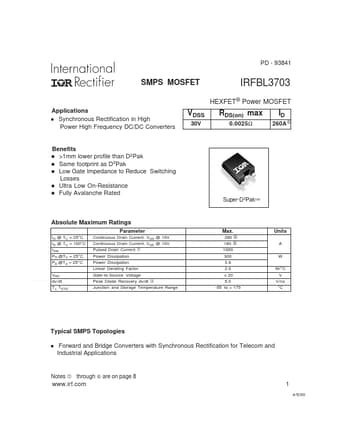

PD - 93841 SMPS MOSFET IRFBL3703 HEXFET® Power MOSFET Applications l Synchronous Rectification in High Power High Frequency DC/DC Converters VDSS 30V RDS(on) max 0.0025Ω ID 260A Benefits >1mm lower profile than D2Pak Same footprint as D2Pak Low Gate Impedance to Reduce Switching Losses l Ultra Low On-Resistance l Fully Avalanche Rated l l l Super-D2PakTM Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C PD @TA = 25°C VGS dv/dt TJ, TSTG Continuous Drain.

IRFBL3703 Features

* br>

* ISD ≤ 76A, di/dt ≤ 100A/µs, VDD ≤ V(BR)DSS, TJ ≤ 175°C Calculated continuous current based on maximum allowable junction temperature. Package limitation current is 95A IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 IR EUROPEAN REGIONAL CENTRE: 4
