Part number: IRFH5207PBF
Manufacturer: International Rectifier
File Size: 328.58KB
Download: 📄 Datasheet
Description: HEXFET Power MOSFET
Features Benefits
Low RDSon (< 9.6 mΩ) Low Thermal Resistance to PCB (< 1.2°C/W) 100% Rg tested Low Profile (<0.9 mm) results in ⇒ Industry-Standard Pinout Compatible wi.
*
*
*
*
Secondary Side Synchronous Rectification Inverters for DC Motors DC-DC Brick Applications Boos.
Image gallery
TAGS
📁 Related Datasheet
IRFH5207PBF - HEXFET Power MOSFET
(International Rectifier)

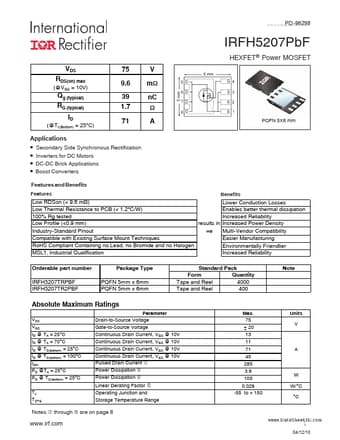

PD -96298 www..com
IRFH5207PbF
HEXFET® Power MOSFET
VDS RDS(on) max
(@VGS = 10V)
75 9.6 39 1.7 71
V mΩ nC Ω A
PQFN 5X6 mm
Qg (typical).
