IRFN450 Datasheet - International Rectifier

IRFN450, POWER MOSFET N-CHANNEL

PD - 90418C POWER MOSFET SURFACE MOUNT(SMD-1) Product Summary Part Number RDS(on) IRFN450 0.415 Ω ID 12A IRFN450 JANTX2N7228U JANTXV2N7228U REF.

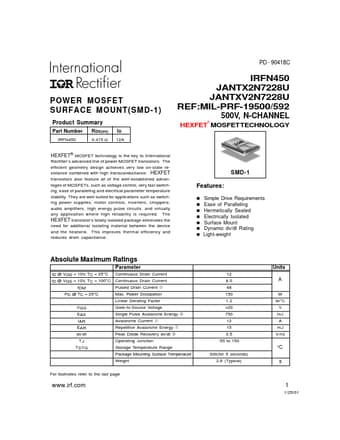

datasheet Preview Page 1 from Datasheet4u.com

IRFN450_InternationalRectifier.pdf

IRFN450 Datasheet Preview — Preview of IRFN450 PDF

Datasheet Details

Part number:

IRFN450

Manufacturer:

International Rectifier

File Size:

180.63 KB

Description:

POWER MOSFET N-CHANNEL

Features

* n Simple Drive Requirements n Ease of Paralleling n Hermetically Sealed n Electrically Isolated n Surface Mount n Dynamic dv/dt Rating n Light-weight Absolute Maximum Ratings ID @ VGS = 10V, TC = 25°C ID @ VGS = 10V, TC = 100°C IDM PD @ TC = 25°C Parameter Continuous Drain Current Continuous Dra

Applications

* such as switching power supplies, motor controls, inverters, choppers, audio amplifiers, high energy pulse circuits, and virtually any application where high reliability is required. The HEXFET transistor’s totally isolated package eliminates the need for additional isolating material between the de
