IRFP460N Power MOSFET

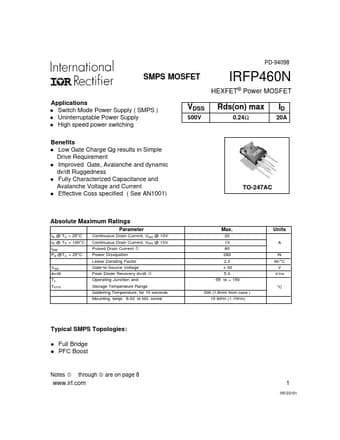

PD-94098 SMPS MOSFET IRFP460N HEXFET® Power MOSFET Applications Switch Mode Power Supply ( SMPS ) l Uninterruptable Power Supply l High speed power switching l VDSS 500V Rds(on) max 0.24Ω ID 20A Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Effective Coss specified ( See AN1001) l TO-247AC Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ T.

IRFP460N Features

* SEMBLY LO T CO D E PART N UM BER IR F P E 3 0 3 A1Q 9 302 D A TE C O D E (Y Y W W ) YY = YEA R W W W E EK Notes: Repetitive rating; pulse width limited by max. junction temperature. ( See fig. 11 )

* Pulse width ≤ 300µs; duty cycle ≤ 2%. Coss eff. is a fixed capacitance that gives th
