IRFP460NPBF HEXFET Power MOSFET

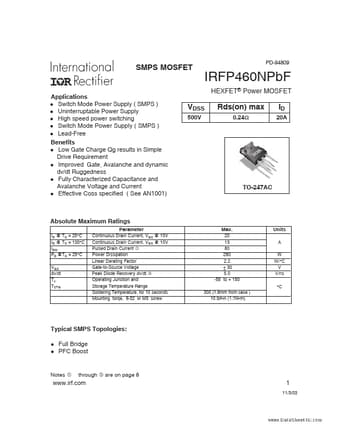

SMPS MOSFET PD-94809 IRFP460NPbF HEXFET® Power MOSFET Applications Switch Mode Power Supply ( SMPS ) Uninterruptable Power Supply High speed power switching Switch Mode Power Supply ( SMPS ) Lead-Free Benefits Low Gate Charge Qg results in Simple Drive Requirement Improved Gate, Avalanche and dynamic dv/dt Ruggedness Fully Characterized Capacitance and Avalanche Voltage and Current Effective Coss specified ( See AN1001) VDSS 500V Rds(on) max 0.24Ω ID 20A TO-247AC Absolute Maximum Ratings.

IRFP460NPBF Features

* rating; pulse width limited by max. junction temperature. ( See fig. 11 ) Starting TJ = 25°C, L = 1.8mH RG = 25Ω, IAS = 20A. (See Figure 12) ISD ≤ 20A, di/dt ≤ 140A/µs, VDD ≤ V(BR)DSS, TJ ≤ 150°C Pulse width ≤ 300µs; duty cycle ≤ 2%. Coss eff. is a fixed capacitance that gives the same charging tim
