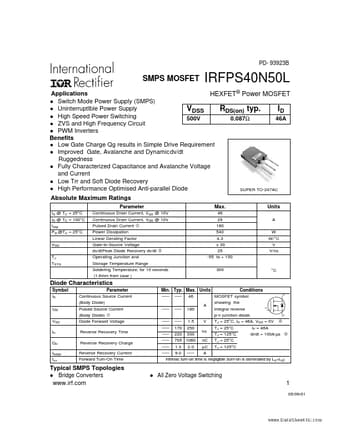

PD- 93923B SMPS MOSFET IRFPS40N50L Applications HEXFET® Power MOSFET l Switch Mode Power Supply (SMPS) l UninterruptIble Power Supply VDSS RDS(on) typ. ID l High Speed Power Switching 500V 0.087Ω 46A l ZVS and High Frequency Circuit l PWM Inverters Benefits l Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Low Trr and Soft Diode Recovery l High Performance Optim.

IRFPS40N50L Features

* ] 3.85 [.152] 5.45 [.215] 2X 3X 1.60 [.062] 1.45 [.058] B A 3X 1.30 [.051] 1.10 [.044] 0.25 [.010] S ECT ION E-E NOT ES : 1. DIMENS IONING AND T OLE RANCING PER AS ME Y14.5M-1994. 2. DIMENS IONS ARE S HOWN IN MILLIMET ERS [INCHES ] 3. CONT ROLLING DIMENS ION: MILLIMET ER 4. OUT LINE CONF ORMS
