IRFPS40N60K HEXFET Power MOSFET

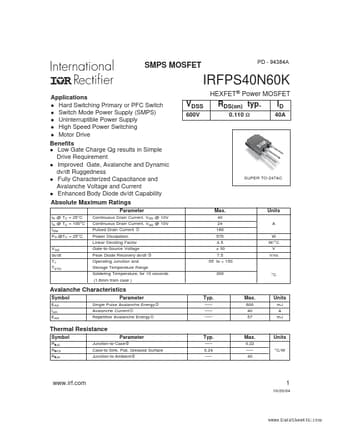

SMPS MOSFET PD - 94384A IRFPS40N60K Applications l Hard Switching Primary or PFC Switch l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply l High Speed Power Switching l Motor Drive Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Enhanced Body Diode dv/dt Capability Absolute Maximum Ratings l HEXFET® Power MOSFET VDSS 600V RDS(on) typ. 0.

IRFPS40N60K Features

* [.582] 13.80 [.544] Ø 1.60 [.063] MAX. E E 4.25 [.167] 3.85 [.152] 5.45 [.215] 2X 3X 1.60 [.062] 1.45 [.058] B A 3X 1.30 [.051] 1.10 [.044] 0.25 [.010] 2.35 [.092] 1.65 [.065] S ECT ION E-E NOTES : 1. DIMENS IONING AND TOLERANCING PER AS ME Y14.5M-1994. 2. DIMENS IONS ARE S HOWN IN MILLIMETE
