IRFS4615PBF, N-Channel HEXFET Power MOSFET

PD -96202 IRFS4615PbF IRFSL4615PbF HEXFET® Power MOSFET Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supp.

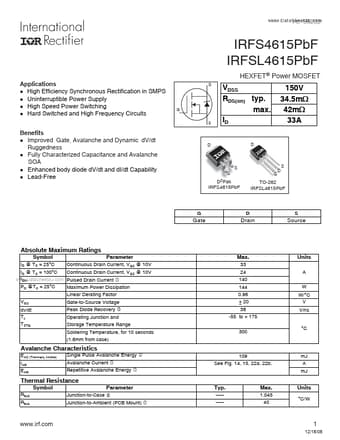

datasheet Preview Page 1 from Datasheet4u.com

IRFS4615PBF_InternationalRectifier.pdf

IRFS4615PBF Datasheet Preview — Preview of IRFS4615PBF PDF

Datasheet Details

Part number:

IRFS4615PBF

Manufacturer:

International Rectifier

File Size:

401.85 KB

Description:

N-Channel HEXFET Power MOSFET

Features

* wed as long asTjmax is not exceeded. 3. Equation below based on circuit and waveforms shown in Figures 16a, 16b. 4. PD (ave) = Average power dissipation per single avalanche pulse. 5. BV = Rated breakdown voltage (1.3 factor accounts for voltage increase during avalanche). 6. Iav = Allowable avalanc

Applications

* l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt
