IRHLG77110 Datasheet - International Rectifier

IRHLG77110 100V 100kRad Hi-Rel Quad N-Channel TID Hardened MOSFET

www.DataSheet4U.com PD-97178 RADIATION HARDENED LOGIC LEVEL POWER MOSFET THRU-HOLE (MO-036AB) Product Summary Part Number Radiation Level RDS(on) IRHLG77110 100K Rads (Si) 0.22Ω IRHLG73110 300K Rads (Si) 0.22Ω ID 1.8A 1.8A 2N7612M1 IRHLG77110 100V, Quad N-CHANNEL TECHNOLOGY MO-036AB International Rectifier’s R7TM Logic Level Power MOSFETs provide simple solution to interfacing CMOS and TTL control circuits to power devices in space and other radiation environments. The threshold voltage re.

IRHLG77110 Features

* n n n n n n n n 5V CMOS and TTL Compatible Fast Switching Single Event Effect (SEE) Hardened Low Total Gate Charge Simple Drive Requirements Ease of Paralleling Hermetically Sealed Light Weight Absolute Maximum Ratings Parameter ID @ VGS = 4.5V, TC=25°C ID @ VGS = 4.5V, TC=100°C IDM PD @ TC = 25°

IRHLG77110_InternationalRectifier.pdf

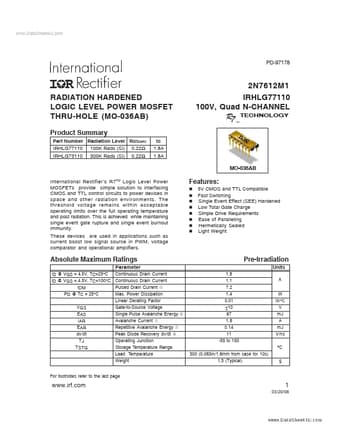

IRHLG77110 Datasheet Preview — Preview of IRHLG77110 PDF

Datasheet Details

Part number:

IRHLG77110

Manufacturer:

International Rectifier

File Size:

245.62 KB

Description:

100v 100krad hi-rel quad n-channel tid hardened mosfet.
