IRHLG7970Z4, 60V 100kRad Hi-Rel Quad P-Channel TID Hardened MOSFET

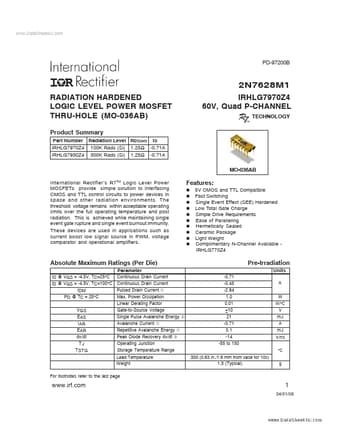

www.DataSheet4U.com PD-97200B 2N7628M1 RADIATION HARDENED LOGIC LEVEL POWER MOSFET THRU-HOLE (MO-036AB) Product Summary Part Number Radiation Level RDS(on) I D IRHLG7970Z4 100K Rads (Si) 1.25Ω -0.71A IRHLG7930Z4 300K Rads (Si) 1.25Ω -0.71A IRHLG7970Z4 60V, Quad P-CHANNEL TECHNOLOGY MO-036AB International Rectifier’s R7 TM Logic Level Power MOSFETs provide simple solution to interfacing CMOS and TTL control circuits to power devices in space and other radiation environments.

The threshold

IRHLG7970Z4 Features

* n n n n n n n n n n 5V CMOS and TTL Compatible Fast Switching Single Event Effect (SEE) Hardened Low Total Gate Charge Simple Drive Requirements Ease of Paralleling Hermetically Sealed Ceramic Package Light Weight Complimentary N-Channel Available IRHLG770Z4 Absolute Maximum Ratings (Per Die) Par
